Easily control up to 8 groups of LED lights and accessories with a compact, space-saving switch panel. Designed for high sensitivity, stability, and strong anti-interference performance, this unit is suitable for both 12V and 24V systems ideal for a wide range of vehicles including cars, off-road vehicles, pickup trucks, and more.

Key Features:

· 8-Circuit Control: Manage 8 groups of electrical accessories from a single panel.

· Space-Efficient Design: Eliminates the need for multiple individual switches, keeping your interior neat.

· Wide Compatibility: Fits 12V/24V systems; perfect for cars, trucks, SUVs, and off-road builds.

· Flexible Mounting Options: Install on the dashboard, center console, overhead sunglasses frame, A-pillar, or gear seat.

· Custom Labeling: Includes self-adhesive labels so you can easily identify each switch according to your setup.

· Reliable Performance: Built for durability with strong anti-interference capabilities and stable operation.

Ideal for controlling general electrical equipment such as headlights, auxiliary lights, air compressors, or any 12V/24V accessory in your vehicle.

Safety - the circuit breaker adopts 80A reset, overcurrent protection, reverse polarity protection and thermal protection. Meet the requirements of vehicle safety specifications.

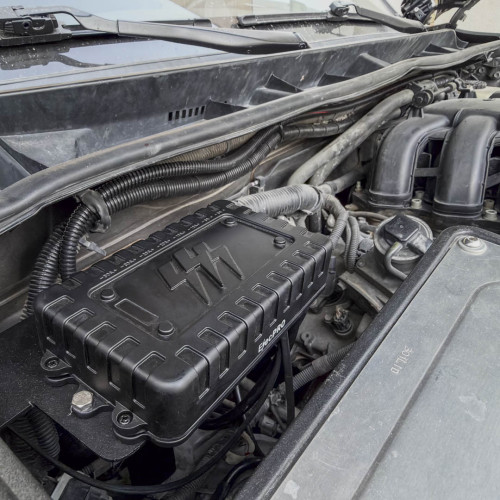

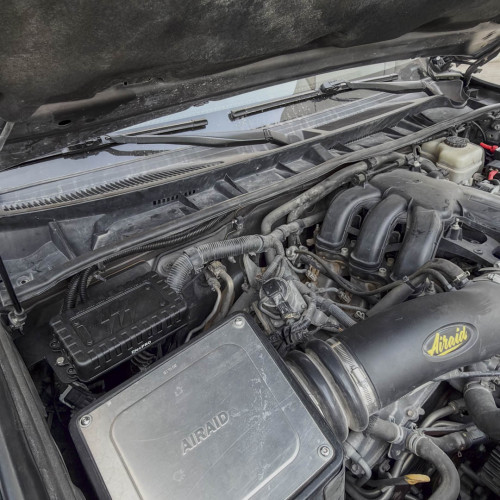

Control box:

Fixing method: bracket locking

Maximum carrying current:

30A- 2 channels

20A - 2 channels

10A -- 2channels

5A - 2 channels

Each circuit shall not exceed the maximum current, and the overall power shall not exceed 80A

RF controller:

Charging mode: type-C charging

Charging indicator light: red flashes, blue is on, and the battery is full

Standby time: 1000h

Battery capacity: 300mAh

Frequency matching mode: within one minute after the integrated controller is powered on, press the fifth key counter clockwise of the controller for 5 times. When the fifth fuse indicator of the control gold flashes, the frequency matching is completed.

The white button in the middle is all on / all off, and the backlight is on after long press.

Specs:

MAX current: 80A

MAX Load Power: Max 1000w

Voltage: DC12V-24V

LED color: Green LED

Switch operation: On - Off

Application: For car light

Packing Size: 25X20X7 CM
